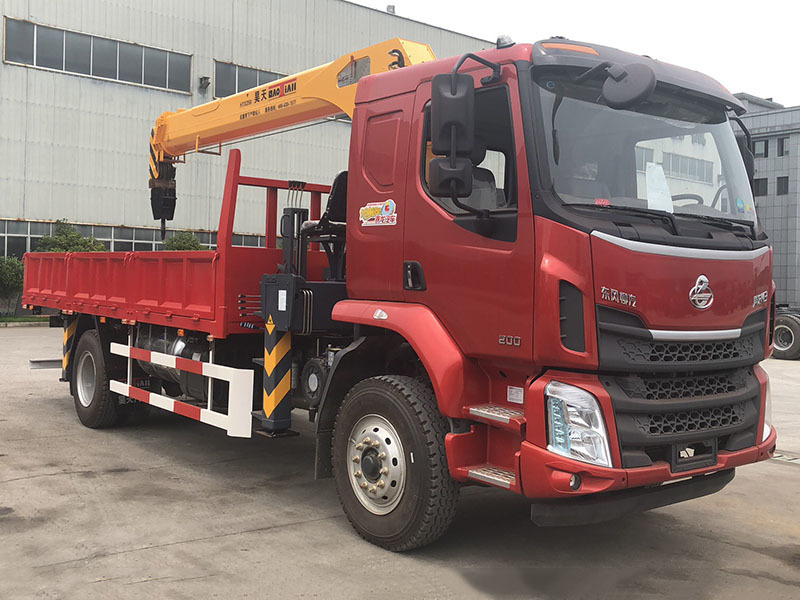

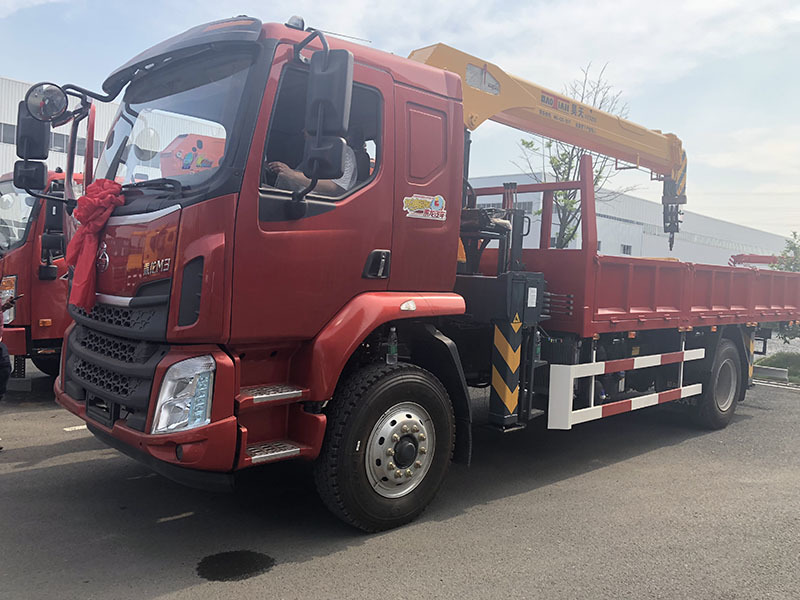

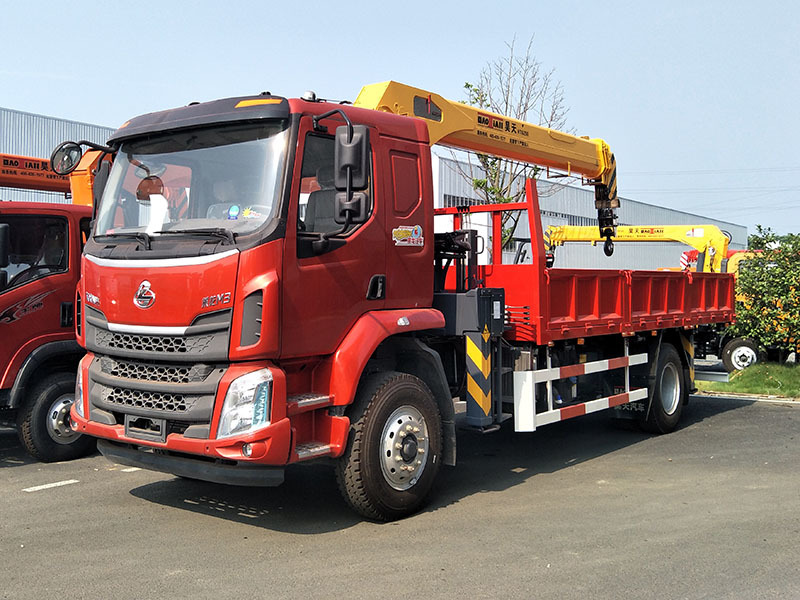

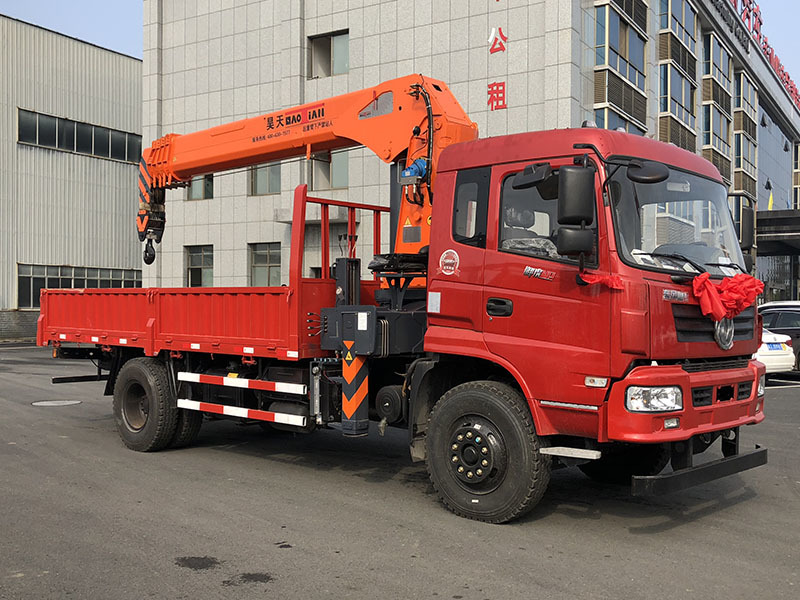

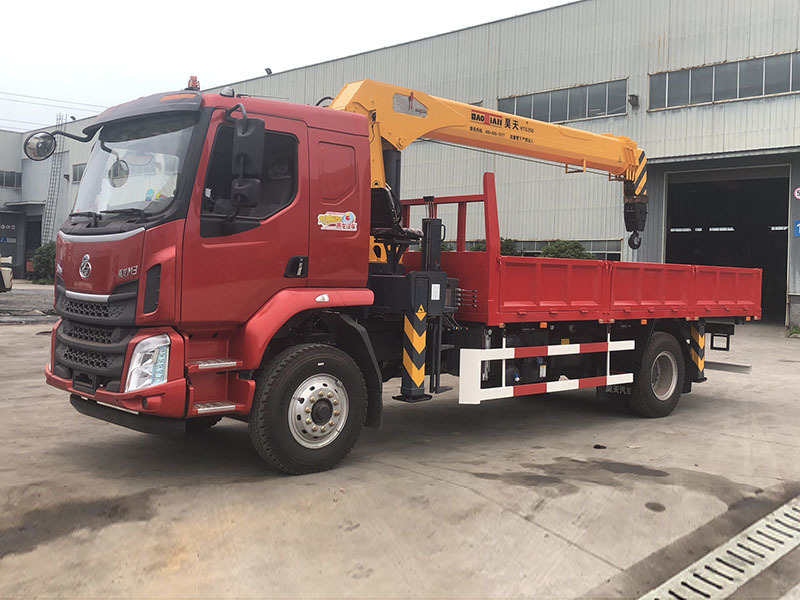

Haotian 10 tons four-section arm crane


Haotian 10 tons four-section arm-mounted crane, 250KN.m lifting torque, can meet the requirements of customers carrying large cranes on medium-sized chassis, achieving high efficiency operation with low maintenance cost

Classification:


Key words:


Product Description


Product main parameters
Maximum lifting torque: 250 KN.m
Maximum lifting weight: 10 T
Maximum arm length: 14500 mm
Minimum arm length: 5200 mm
Outrigger span: 2311-5605 mm
Rotary mode: 360° full swing
Installation space: 1100 mm
System pressure: 23 Mpa
Recommended flow: 75 L/min
Crane standard weight: 3228 Kg
Maximum lifting height: 16.4 m
Maximum working range: 14.1 m
Crane height: 2480 mm
Slewing support track diameter: 680 mm
