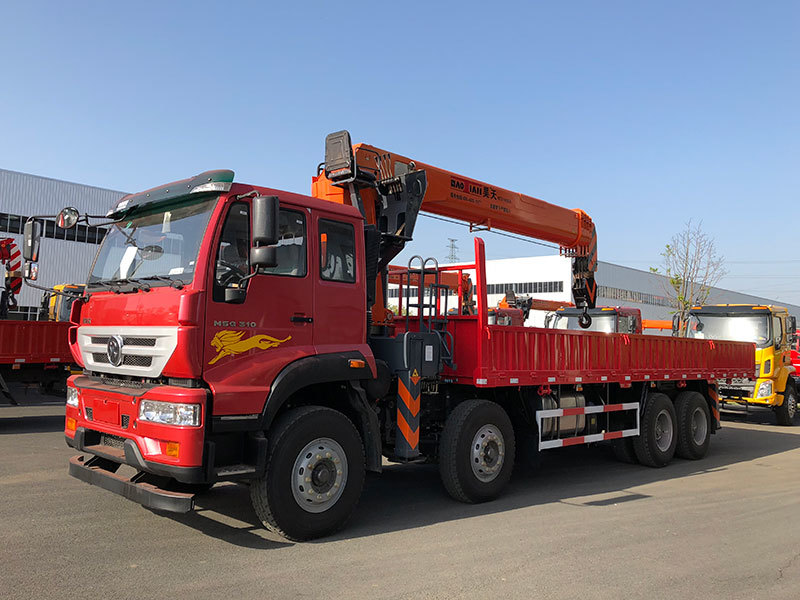

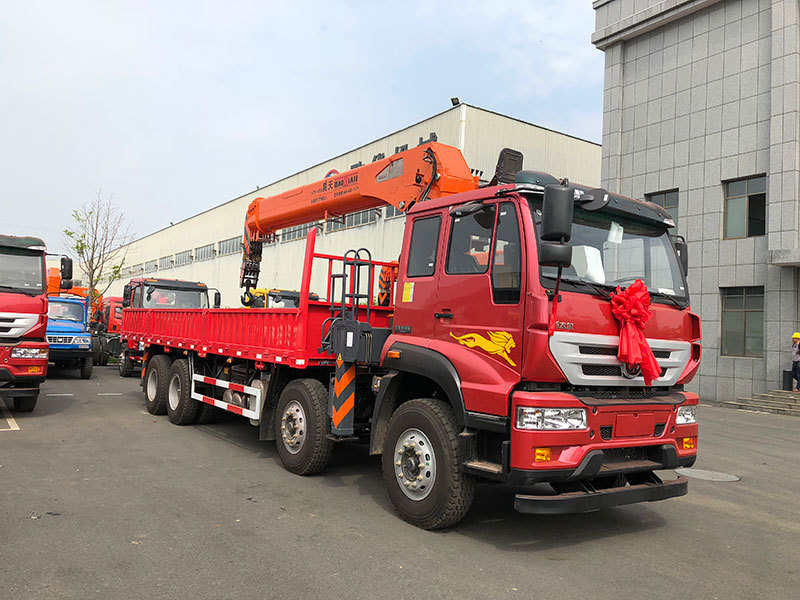

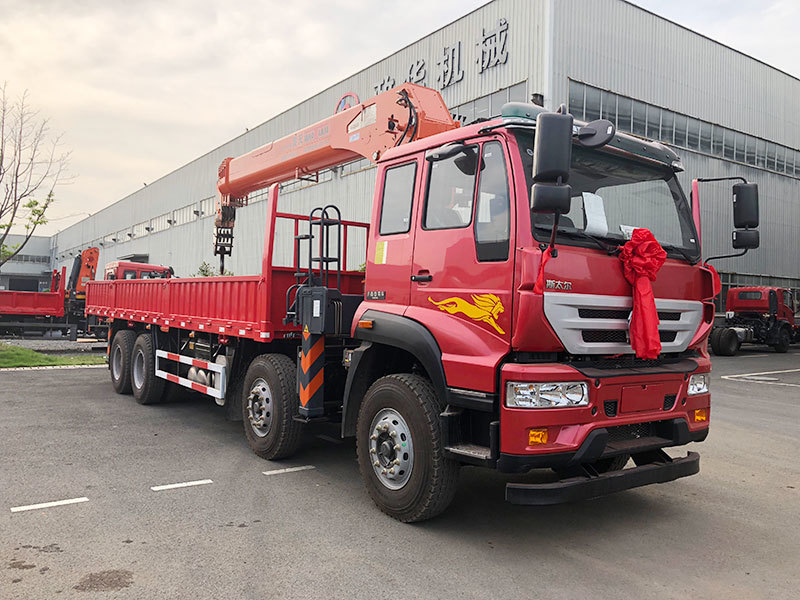

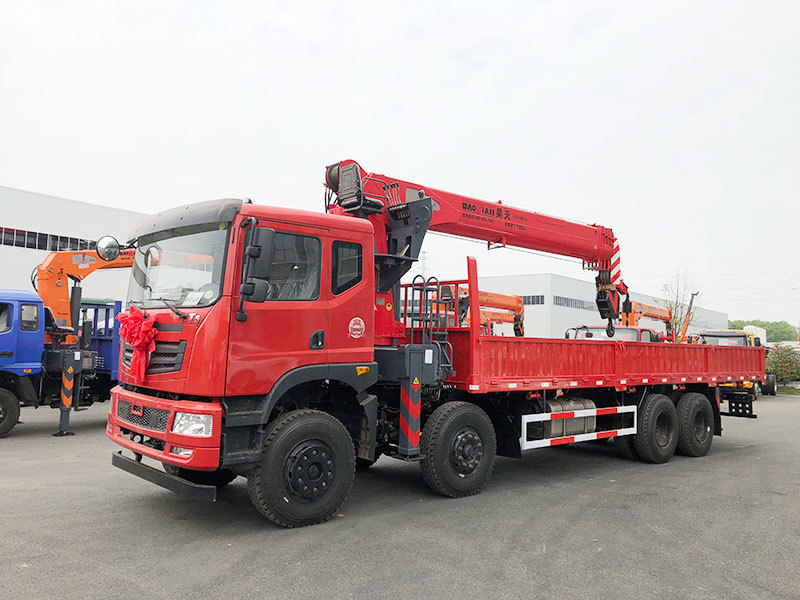

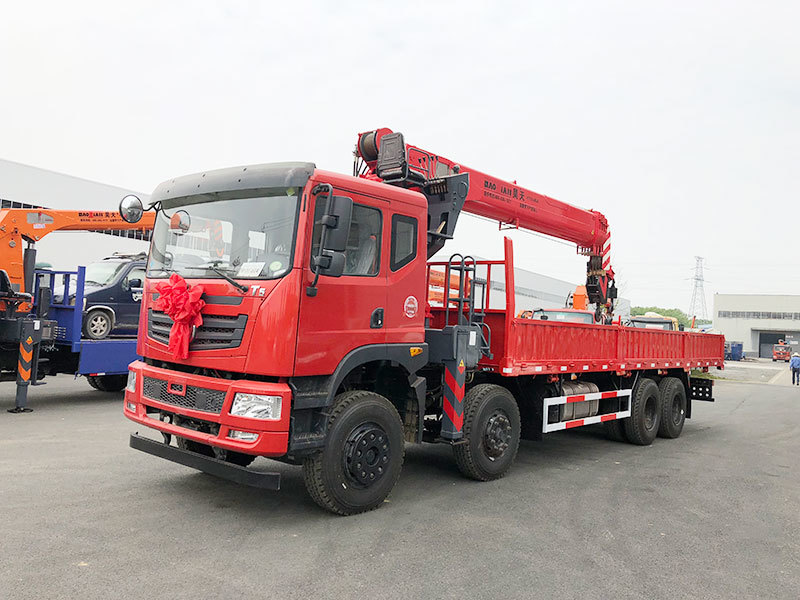

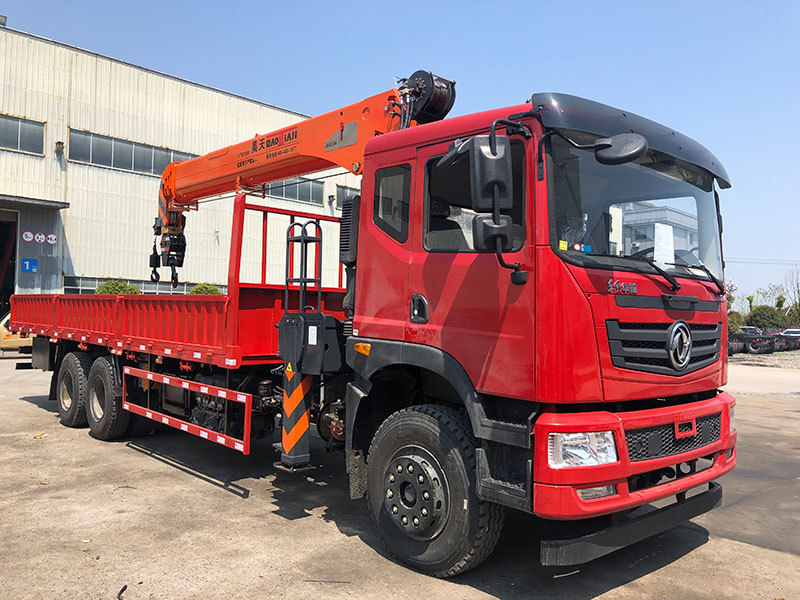

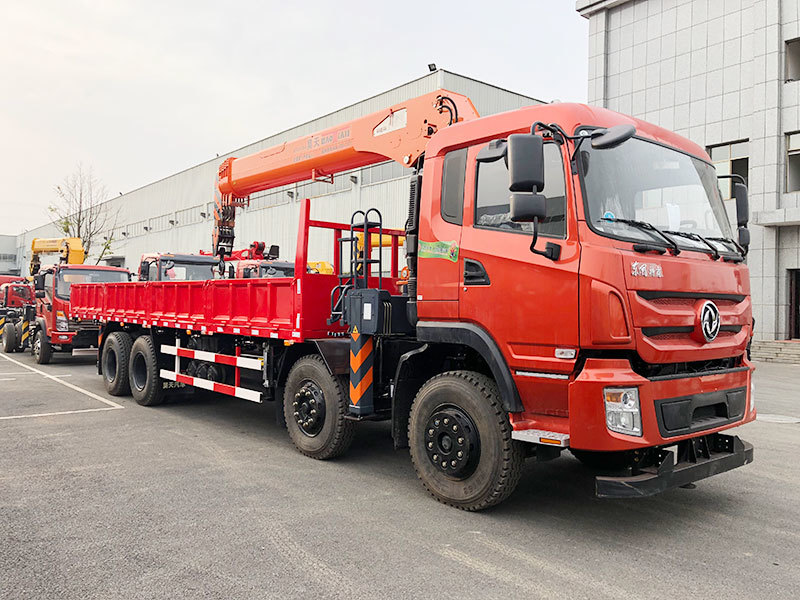

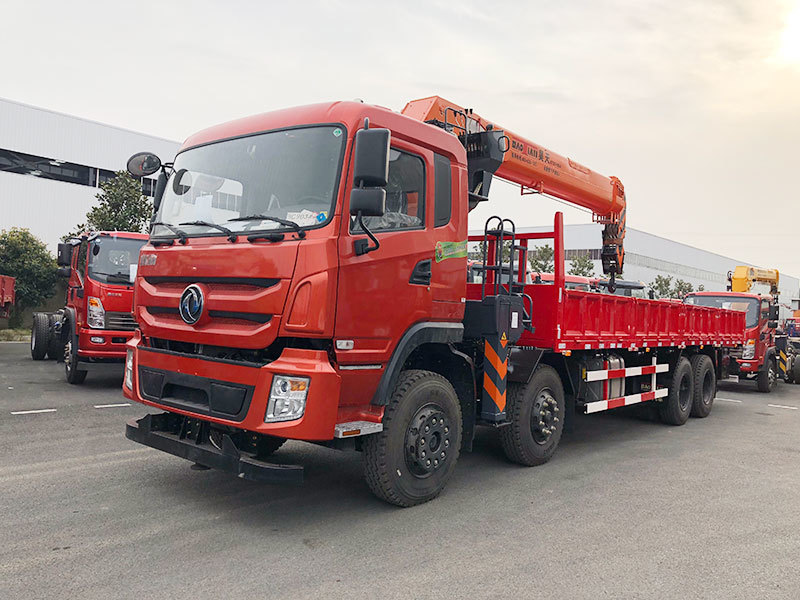

Haotian 14 tons five-section arm crane


Haotian 14 tons of five-section arm-mounted cranes fully meet the equipment lifting, power construction, engineering construction and other fields of operation, and optional bipolar legs, greatly improving the stability of lifting operations.

Classification:


Key words:


Product Description


Product main parameters
Maximum lifting torque: 350 KN.m
Maximum lifting weight: 14 T
Maximum arm length: 19000 mm
Minimum arm length: 5535 mm
Outrigger span: 2277-5787/7200 mm
Rotary mode: 360° full swing
Installation space: 1368 mm
System pressure: 23 Mpa
Recommended flow: 100 L/min
Crane standard weight: 4992/5597 Kg
Maximum lifting height: 21.7 m
Maximum working range: 18.6 m
Crane height: 2621 mm
Slewing support track diameter: 800 mm
